Upgrading my not a clocks

Monday, July 22nd, 2024 at 11:31pm

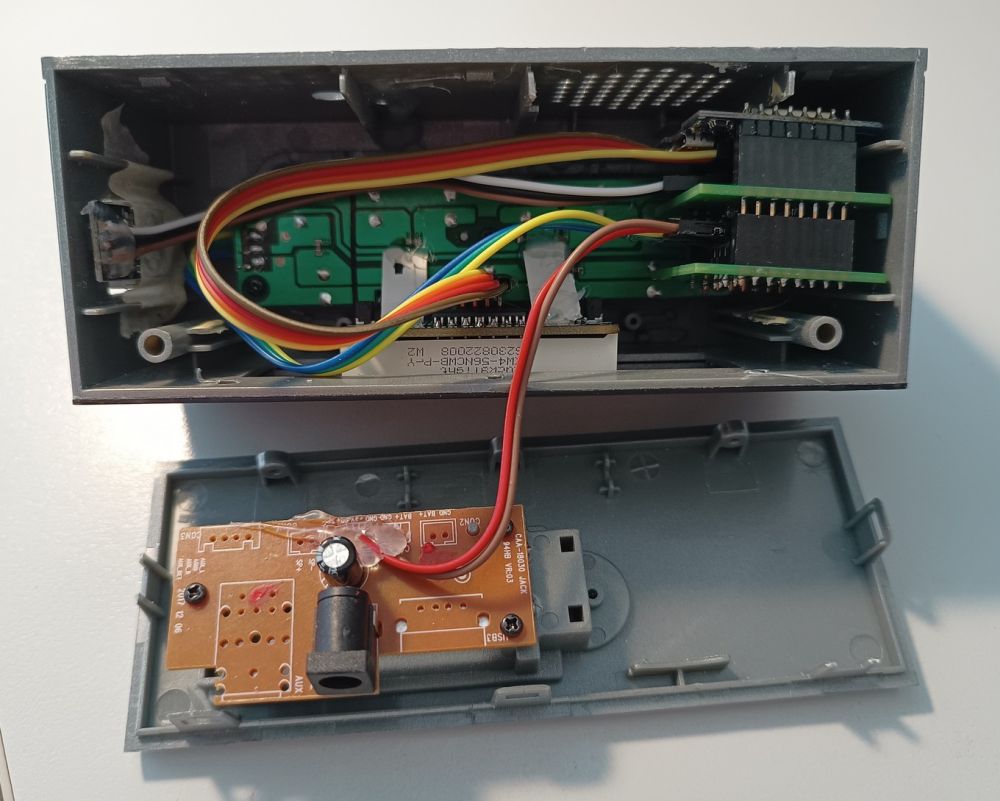

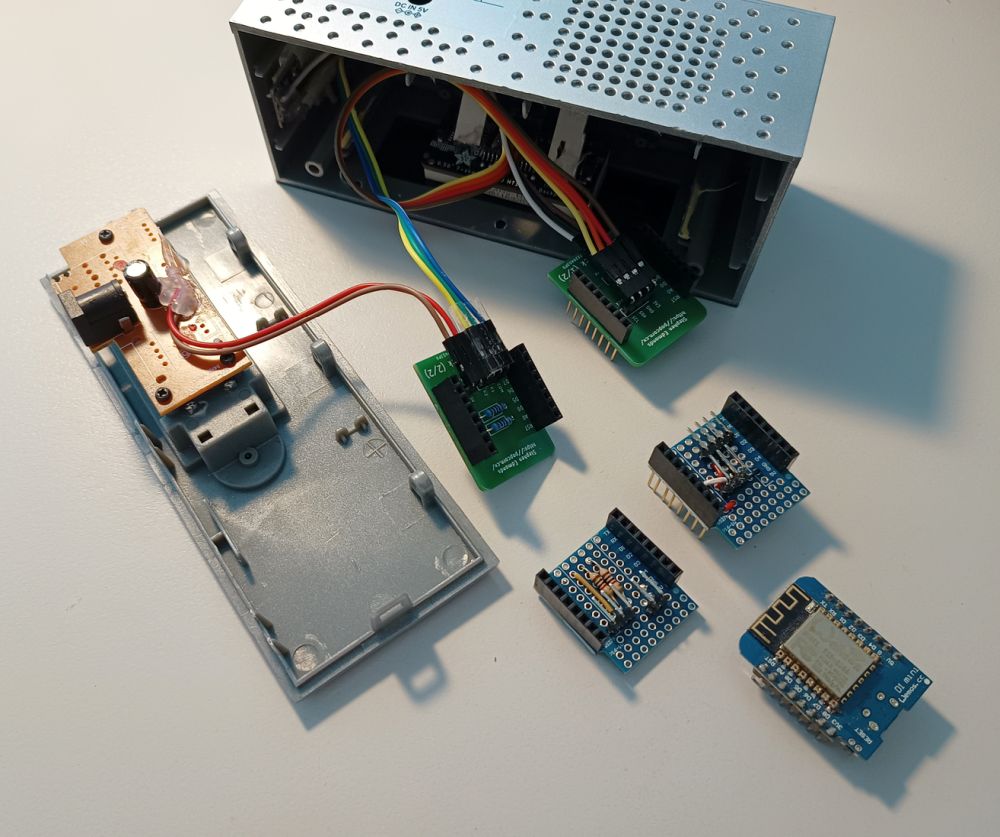

After testing my shiny new PCBs I moved on to upgrading my not a clocks:

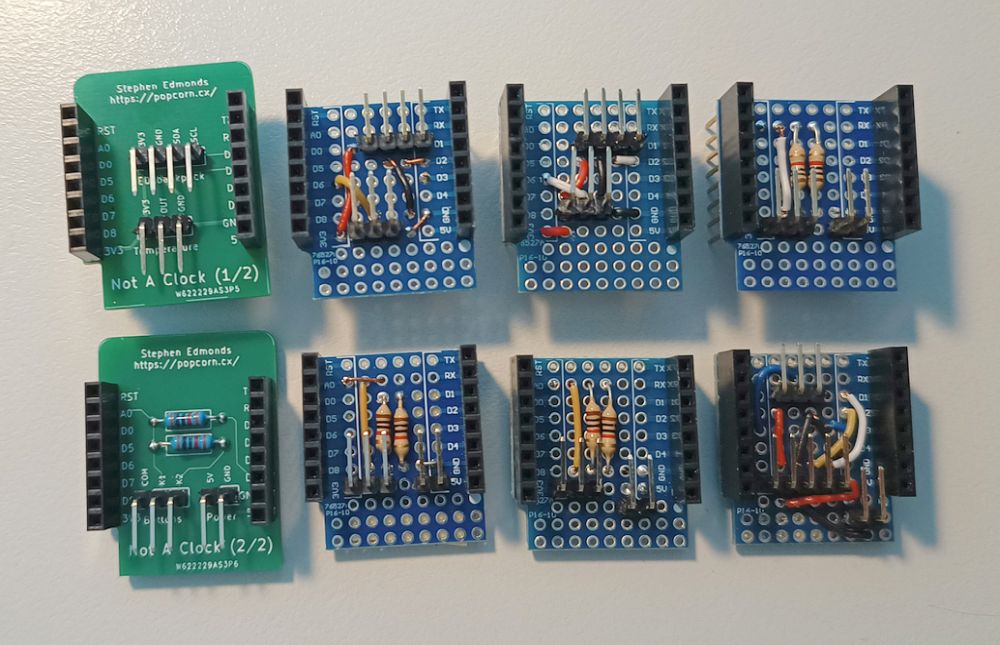

I was able to compare the new PCBs against the ones I had soldered up on protoshields at various times:

Now that the boards were all the same I was now able to connect up the buttons on all of the not a clocks, but I also found that at I hadn’t been consistent with the pin assignments, so I also flashed them all to be the latest version.
